Adjustable Electrofusion Elbow for IPS HDPE Pipe
Orders over $500 ship free within the Continental US.
Questions? Call/Text (918)720-7802 for assistance.

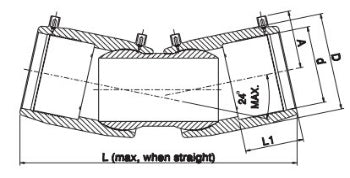

These adjustable elbows allow for custom angles up to 11.25°. This is very helpful when making a pipe repair where the pipe ends do not align properly.
These fittings are manufactured using PE 4710 black compounded resins listed in the PPI TR-4/2010 and which conform to international standards for potable water including NSF 61.
Pressure rated 200 psi (water) and the equivalent MAOP (gas) in accordance with governing regulations
Approved on pipe materials: PE 2406 / 2708, PE 3408 / 3608 and PE 3408 / 3608 / 4710
Approved Wall Thicknesses include SDR 17 and below (thicker).
Fusion time and cooling time are clearly marked on the barcode label of each and every fitting. In addition, they may be obtained using a barcode reader. These are equipped with a red colored self-recognition terminal pin that communicates fusion time automatically to Plasson Controllers (the Smart-System solution) when the terminals are connected according to instructions.
These fittings may be welded successfully at ambient temperatures from 14 to 113 degrees Fahrenheit (-10 to 45C).
These fittings are designed, tested and quality controlled with procedures based on the following international standards:
FM 1613 (FM approved fittings only)
The quality assurance system for these products is in accordance with ISO 9001, which imposes stringent standards of control throughout the manufacturing process.
