PitBull 26

Posted by Ben Murphy on

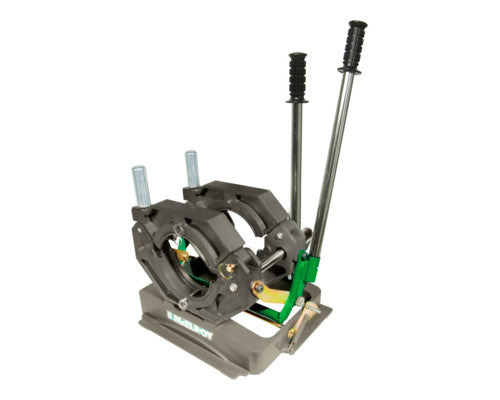

The McElroy Pit Bull® 26 fuses pipe sizes from 2" IPS to 6" DIPS and 63mm to 180mm depending on the model.  McElroy's line of Pit Bull® fusion machines are compact, lightweight and rugged.

The 26 incorporates McElroy's patented Centerline Guidance System, a semi-automatic locking cam system that maintains force during the cooling cycle, and the ability to fit on the Manual Fusion Machine Stand.

The 26 fusion unit has a greater mechanical advantage ratio than the popular PitBull 14, as well as an electric facer with balance point handle for fast facing of pipe.

The McElroy Pit Bull 26 Features:

  • Hand-operated;
  • Thermostatically-controlled heater to provide constant fusion temperature;
  • ISO-compliant industrial Teflon-coated heater plates;
  • Patented Centerline Guidance system for equal distribution of force around the joint;
  • Hand-anodized aluminum wear surfaces for corrosion resistance;
  • Thrust bearing equipped clamp knobs to minimize force required to clamp and round pipe;
  • Narrow clamp design for precise pipe alignment;
  • Serrated jaws and inserts keep pipe from slipping during fusion;
  • Conventional facer design features ball-bearing construction and gear drive for long life;
  • Locking cam to maintain force during the cooling cycle; and
  • Compact and durable.
