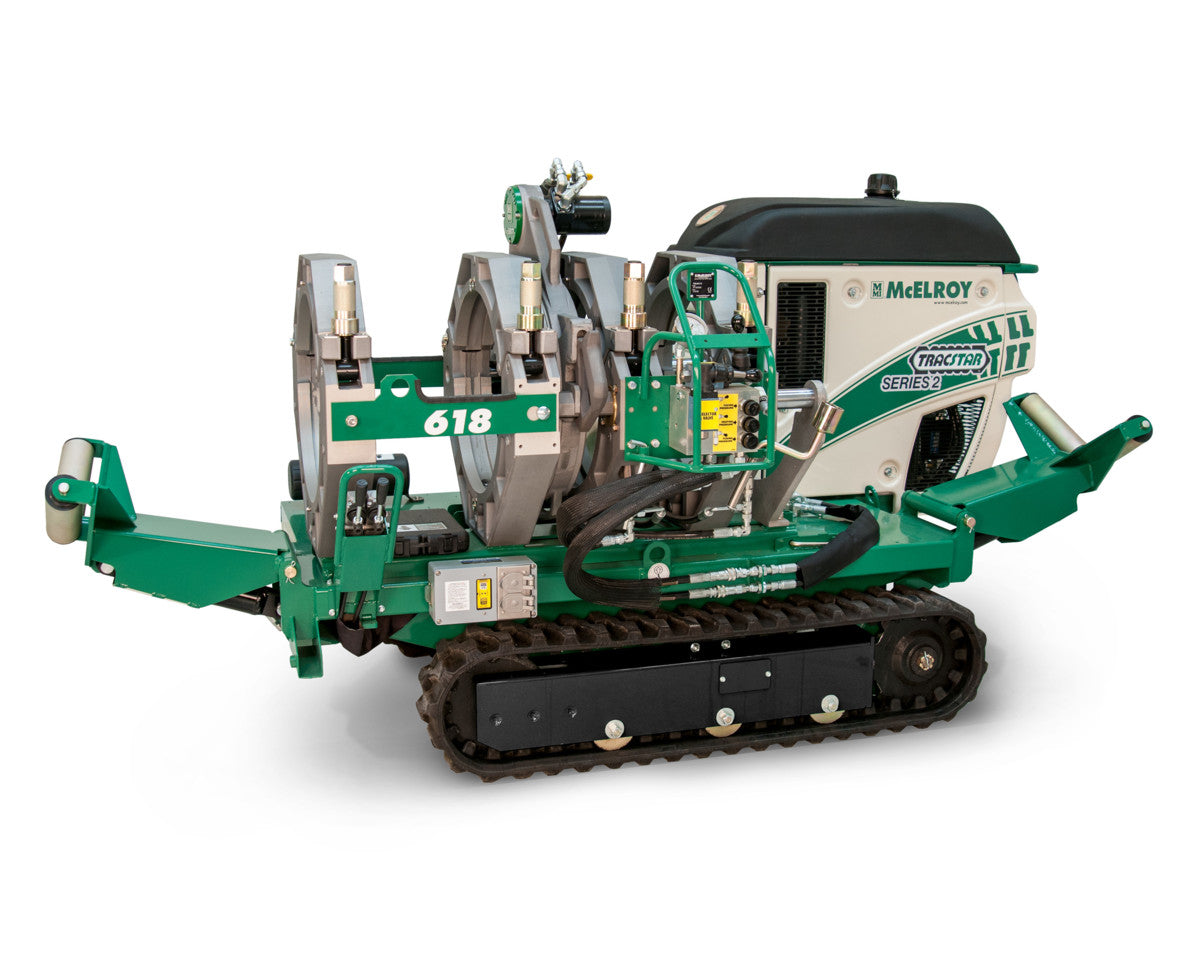

TracStar® 618 Series 2 Fusion Machine Package
TracStar® 618 Series 2 Fusion Machine Package

TracStar® 618 Series 2 Fusion Machine Package

$86,489.00

6" IPS - 18" OD (160mm - 450mm)

TracStar® 618 Series 2 is capable of fusing 6" IPS - 18" OD (160mm - 450mm).  We currently have this unit in stock with High Force Cylinders and Manual Clamping.

The new TracStar 618 Series 2 has been completely redesigned based on feedback from the field. The Series 2 machines incorporate a new cowling design that aids in heat dissipation — while providing easier access for machine maintenance. An updated electrical system increases the circuit protection and a standard battery disconnect in now incorporated for easy lockout.

A Hydraulic Clamping kit is available for all TracStar 618 Series 2 models. Add HC to the end of the part number or select the Hydraulic Clamping option while customizing your machine package.

The TracStar 618 is also available as an Automated machine that guides the operator through each step of the fusion process.

This package includes fusion machine, facer, heater, insulated heater stand and lifting assembly.


Featured Parts and Accessories:

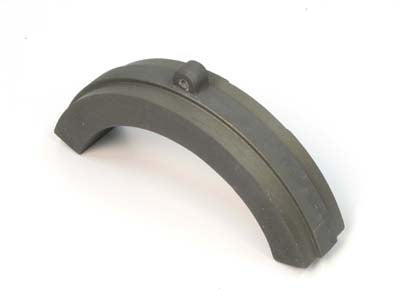

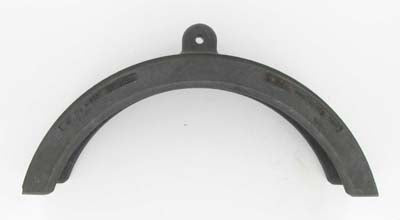

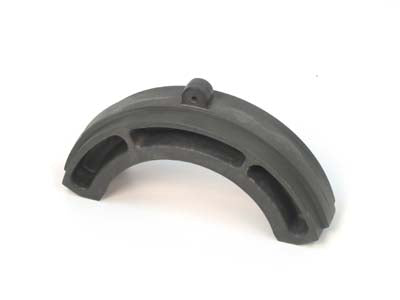

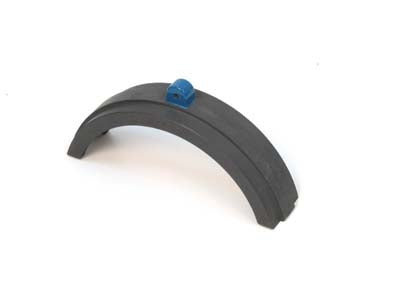

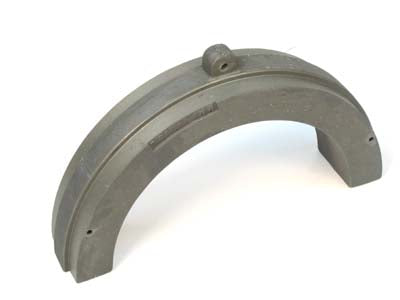

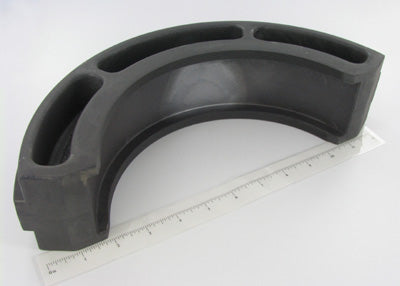

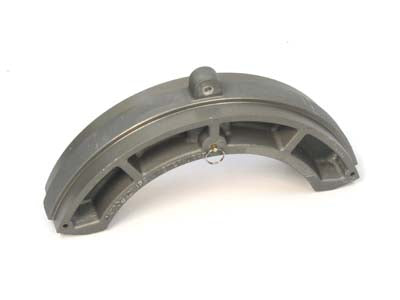

618 Insert Sets
618 Insert Sets
618 Insert Sets
618 Insert Sets
618 Insert Sets
618 Insert Sets
618 Insert Sets
618 Insert Sets
618 Insert Sets

618 Insert Sets

View Details

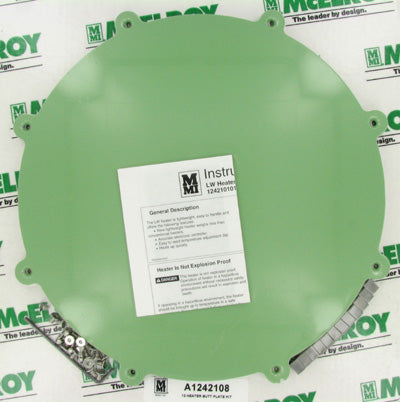

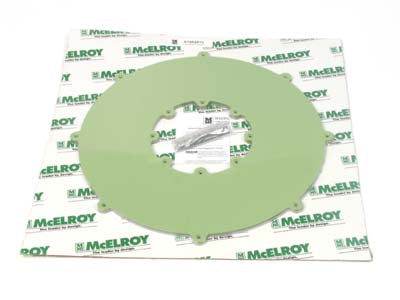

618 Butt Plate Kit
618 Butt Plate Kit
618 Butt Plate Kit

618 Butt Plate Kit

View Details

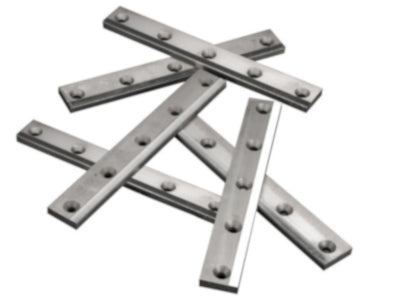

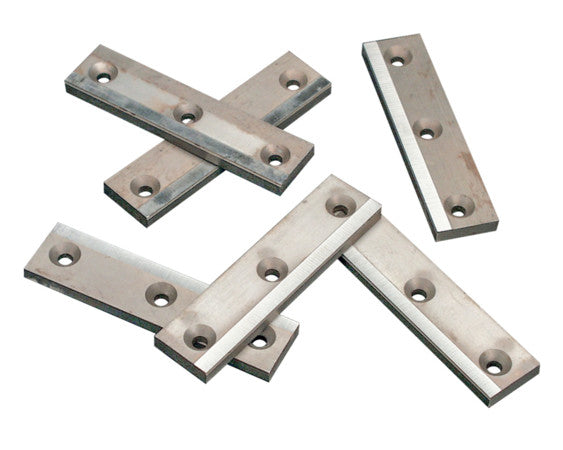

618 Blade Kit
618 Blade Kit
618 Blade Kit

618 Blade Kit

View Details

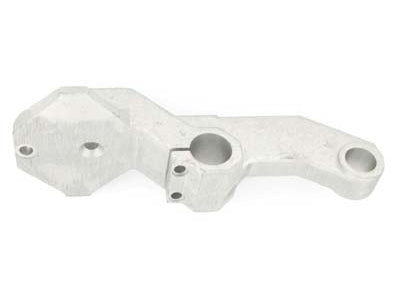

618 Facer Arm Kit
618 Facer Arm Kit

618 Facer Arm Kit

View Details

Specifications

TracStar® 618 Series 2
Machine2,290 lbs (1,038.7 Kg)
4-Jaw Carriage511 lbs (231.8 Kg)
3-Jaw Carriage416 lbs (188.7 Kg)
Facer94 lbs (42.6 Kg)
6" IPS - 12" DIPS Heater28 lbs (13 Kg)
12" IPS - 18" OD Heater34 lbs (15.4 Kg)
Shipping Weight2,791 lbs (1,266 Kg)
View Spec Sheet
TracStar® 618 Series 2
System Pressure 2000 PSI (137.9 BAR) Max.
Hydraulic Reservoir Capacity8 Gallons (30.28 Liters)
View Spec Sheet
TracStar® 618 Series 2
Engine Type 20 HP Liquid Cooled
Fuel TypeDiesel
Fuel Tank Capacity5 Gallons (18.92 Liters)
Operational Tank Capacity8 Hours
Starting SystemElectric
View Spec Sheet
TracStar® 618 Series 2
InputNone, self-contained
AC Output120V & 240V, 60Hz, 15 Amp
Heater Power3000 Watt
Facer PowerHydraulic
View Spec Sheet
TracStar® 618 Series 2
FrameWelded steel construction
Brake Self-locking
View Spec Sheet
TracStar® 618 Series 2
TrackedRubber crawler tracks
TransportationSelf-propelled
Vehicle Speed1.5 MPH max
LiftingLift points and lifting assembly
View Spec Sheet

TracStar® 618 Series 2

MachineShipping Container
Length97.2" (2,468.9 mm)90" (2,286 mm)
Width56.1" (1,424.9 mm)60" (1,524 mm)
Height53.1" (1,348.7 mm)63" (1,600 mm)
View Spec Sheet

Cylinder Force Selection

View Spec Sheet

Downloads

TracStar 618 Series 2 Product Manual

TracStar 618 Series 2 Spec Sheet

Related Equipment

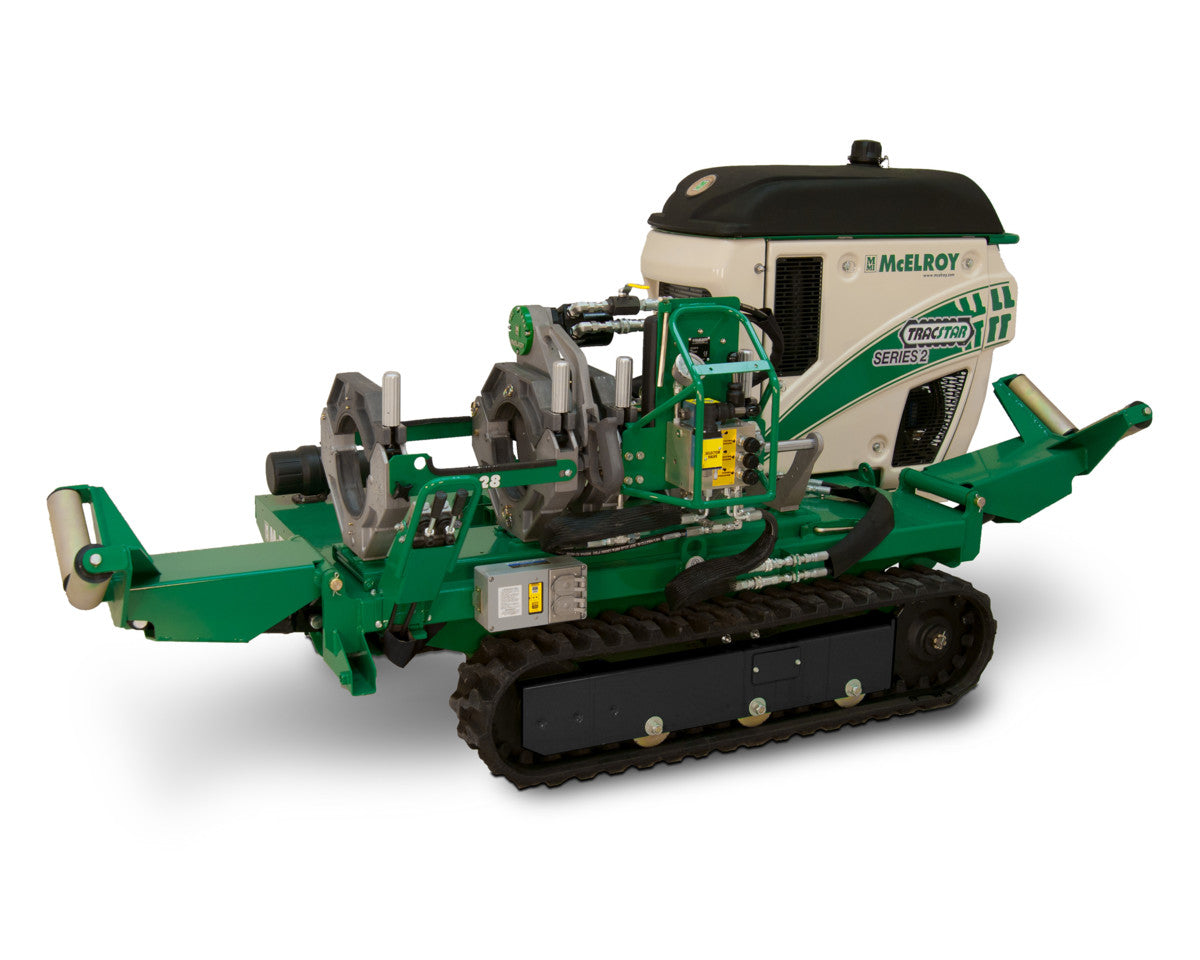

TracStar® 28 Series 2 Fusion Machine Package

TracStar® 28 Series 2 Fusion Machine Package

$55,970.00
TracStar® 28 Series 2 Combination Unit Fusion Machine Package

TracStar® 28 Series 2 Combination Unit Fusion Machine Package

$56,336.00

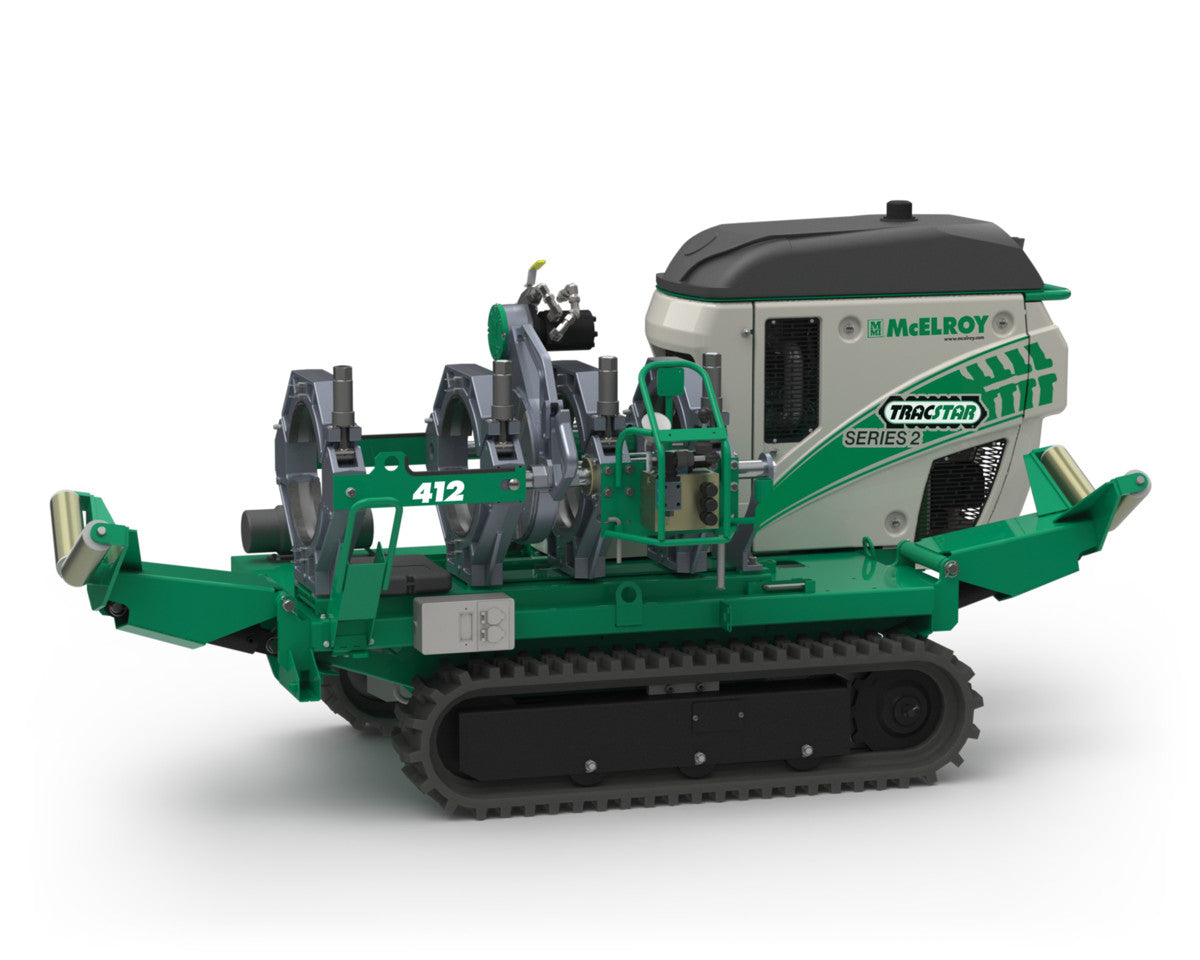

TracStar® 412 Series 2 Fusion Machine Package

TracStar® 412 Series 2 Fusion Machine Package

$68,275.00
TracStar® 618 Series 2 Fusion Machine Package

TracStar® 618 Series 2 Fusion Machine Package

$86,489.00

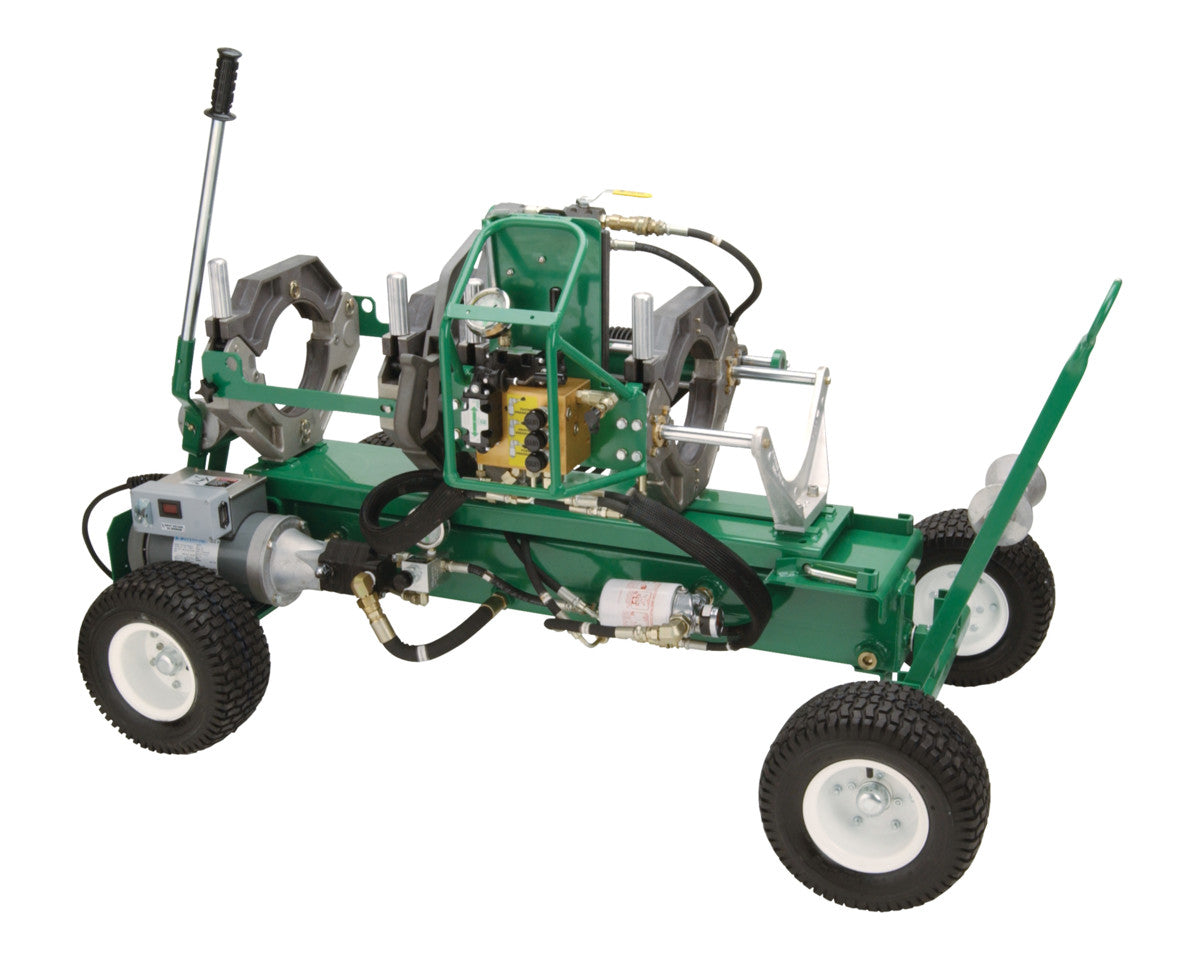

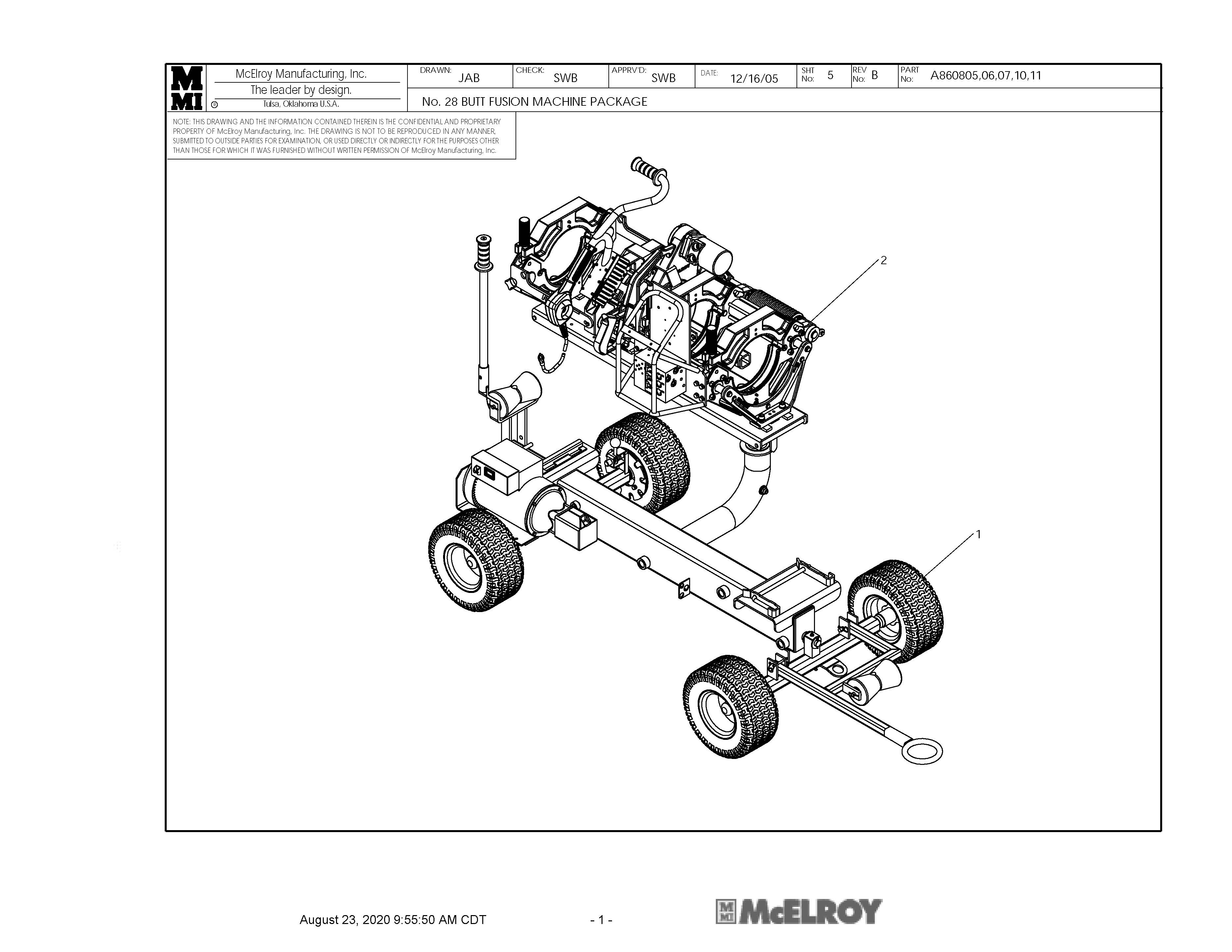

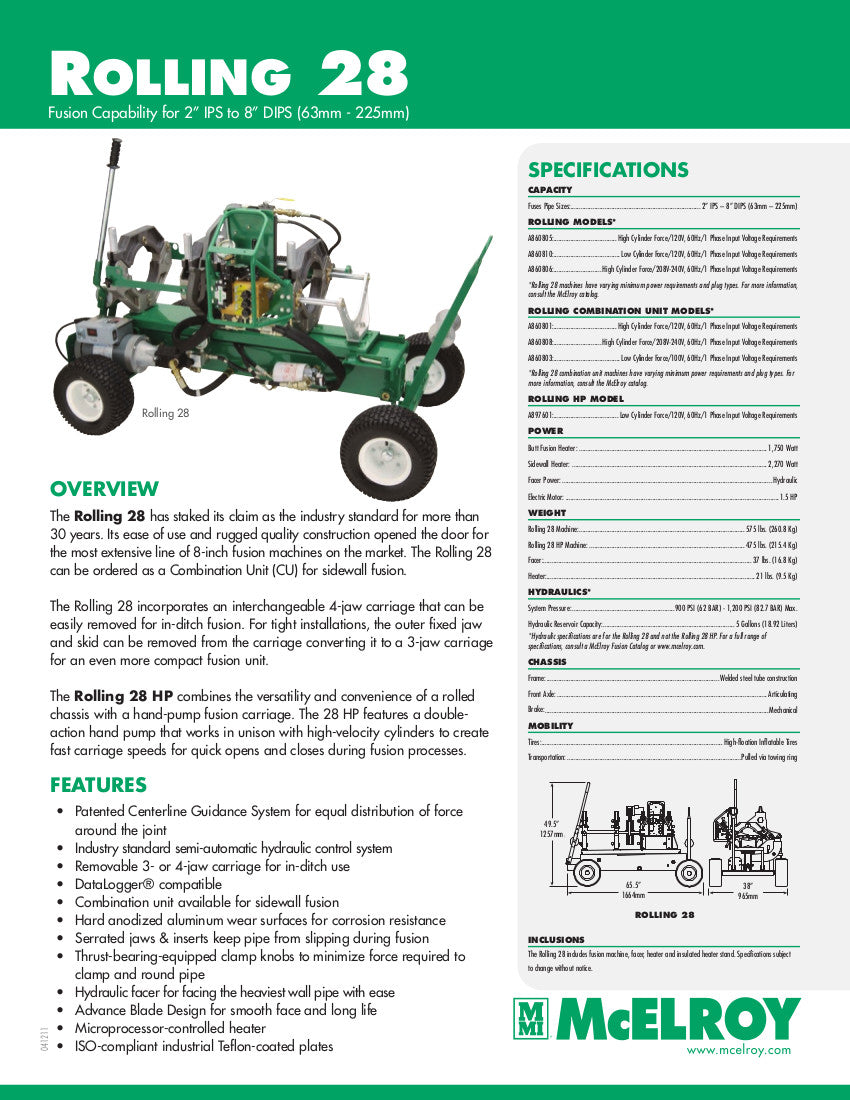

Rolling 28 Fusion Machine Package
Rolling 28 Fusion Machine Package
Rolling 28 Fusion Machine Package
Rolling 28 Fusion Machine Package
Rolling 28 Fusion Machine Package

Rolling 28 Fusion Machine Package

$27,034.00

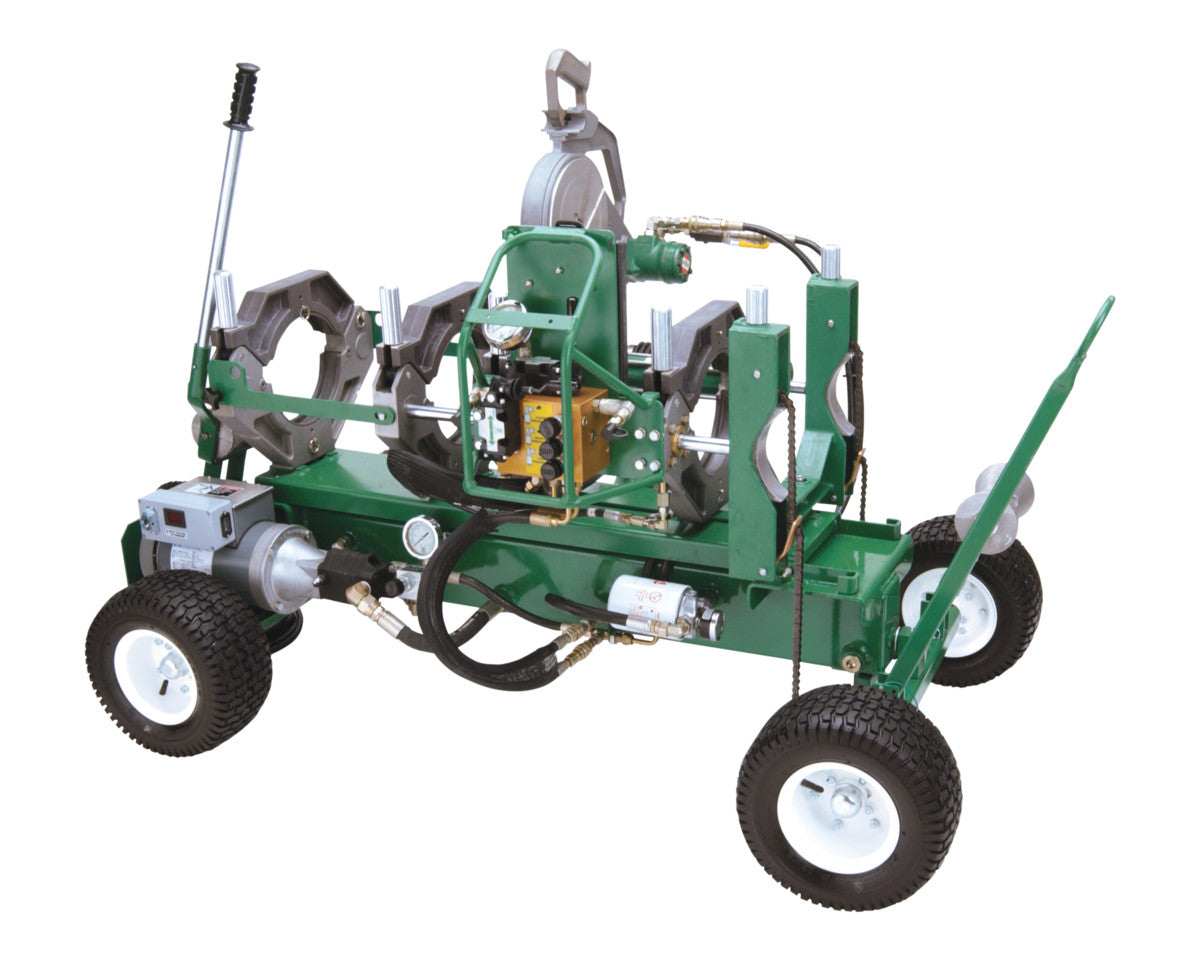

Rolling 28 Combination Unit Fusion Machine Package
Rolling 28 Combination Unit Fusion Machine Package

Rolling 28 Combination Unit Fusion Machine Package

$27,590.00

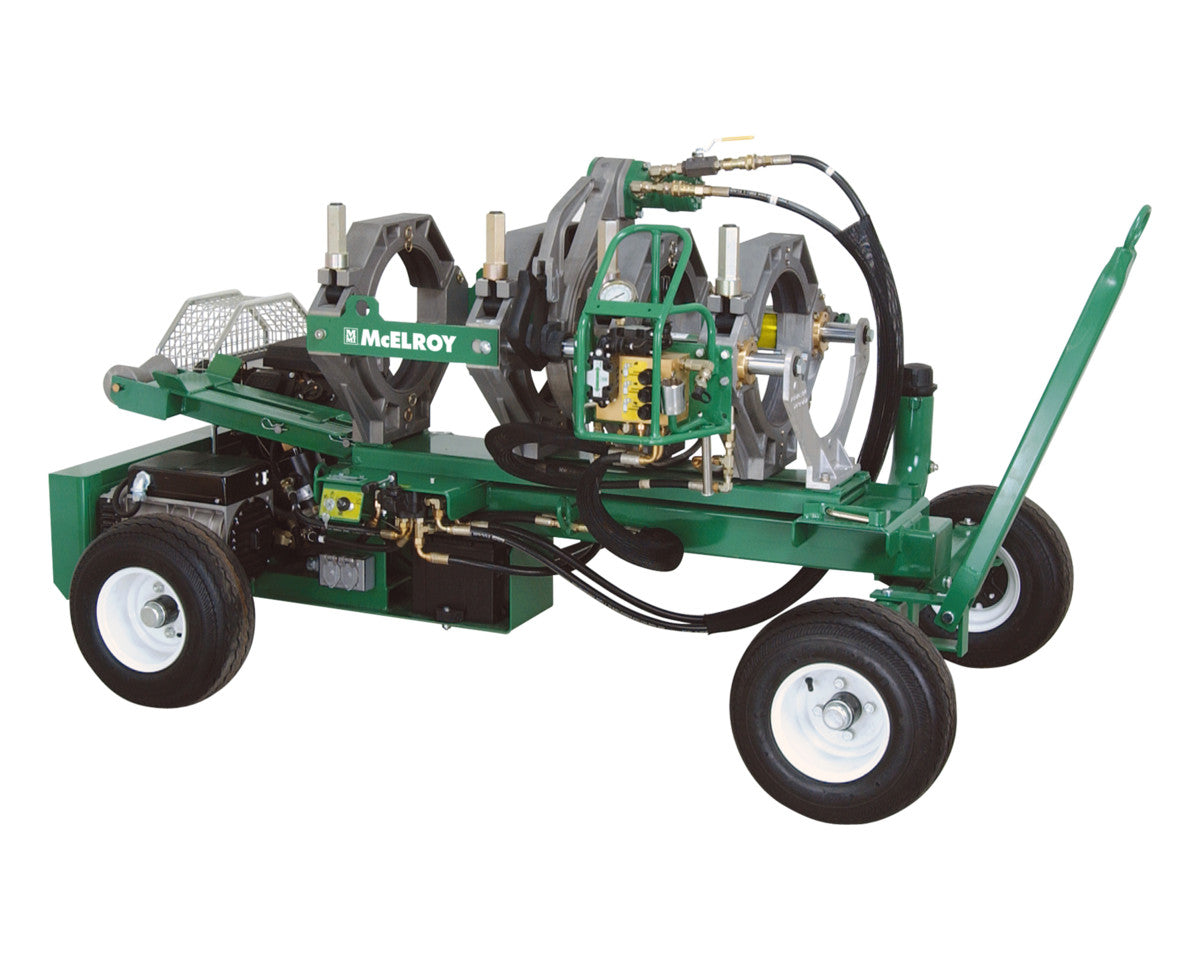

Rolling 412 Electric Fusion Machine Package
Rolling 412 Electric Fusion Machine Package

Rolling 412 Electric Fusion Machine Package

$49,889.00

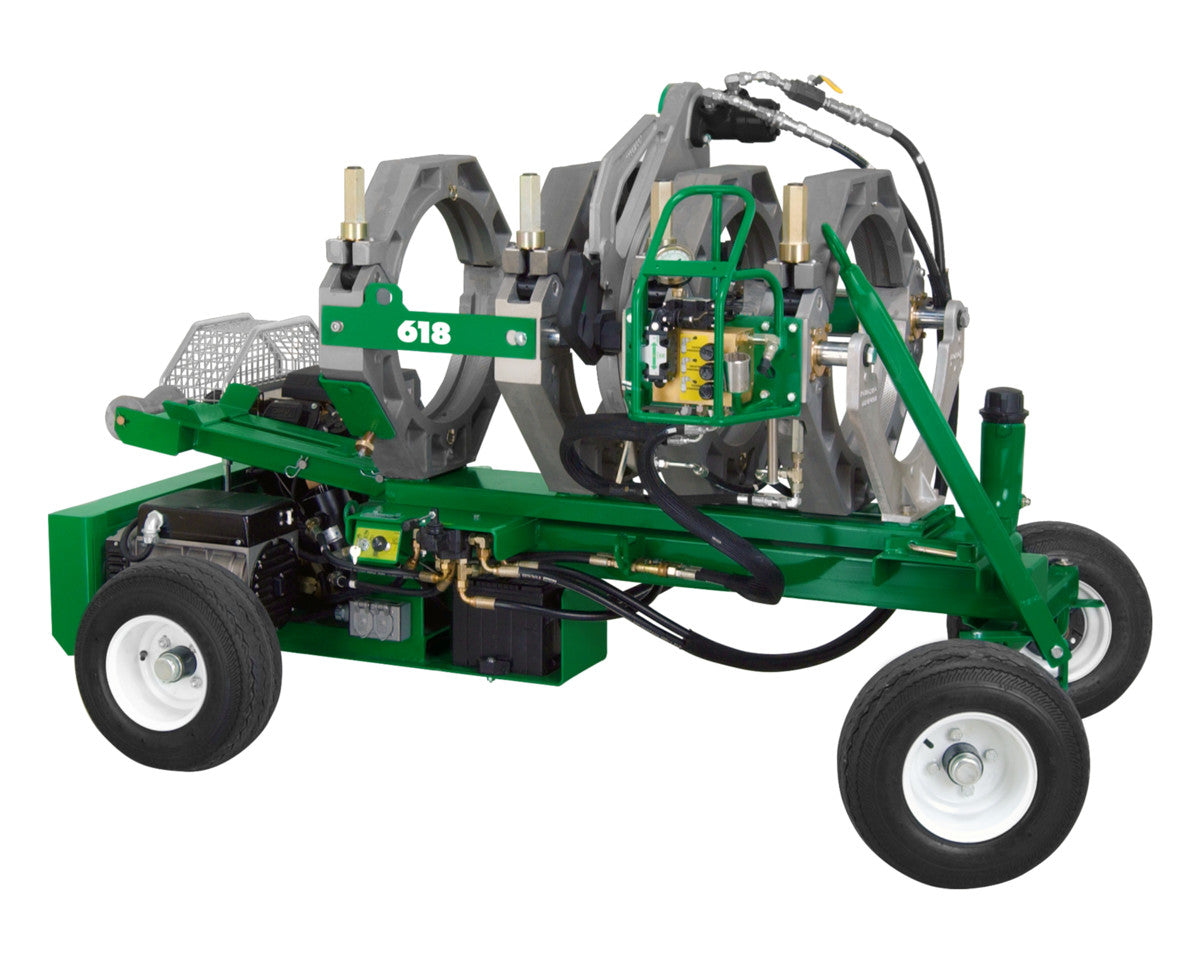

Rolling 618 Electric Fusion Machine Package
