Acrobat™ 250 with EP800AD HPU Fusion Machine Package

Acrobat^™ 250 with EP800AD HPU fuses 63mm - 250mm (2" - 10")

The Acrobat™ 250 has a compact design for easy maneuvering in tight work spaces and is capable of fusing pipe on the ground, vertically and overhead. To further reduce its footprint, the carriage can be configured from 4 to 3 jaws without tools. A single-size insert design can accommodate a variety of pipe sizes, and its narrow jaws allow fusions to most flanges and fittings.

The Acrobat 250 comes with a lightweight heater and guide rod latching system which eliminates the need to hold the heater in place during overhead fusions. The Acrobat is compatible with two hydraulic power units (HPUs) designed to meet the maximum system pressure desired on your jobsite. Two carriage pressure configurations are available: low force, for fusing in low-drag situations or with thinner-walled pipe; and high-force, for fusing in high drag and vertical applications. Both allow the operator to present the facing, heating and fusing pressures.

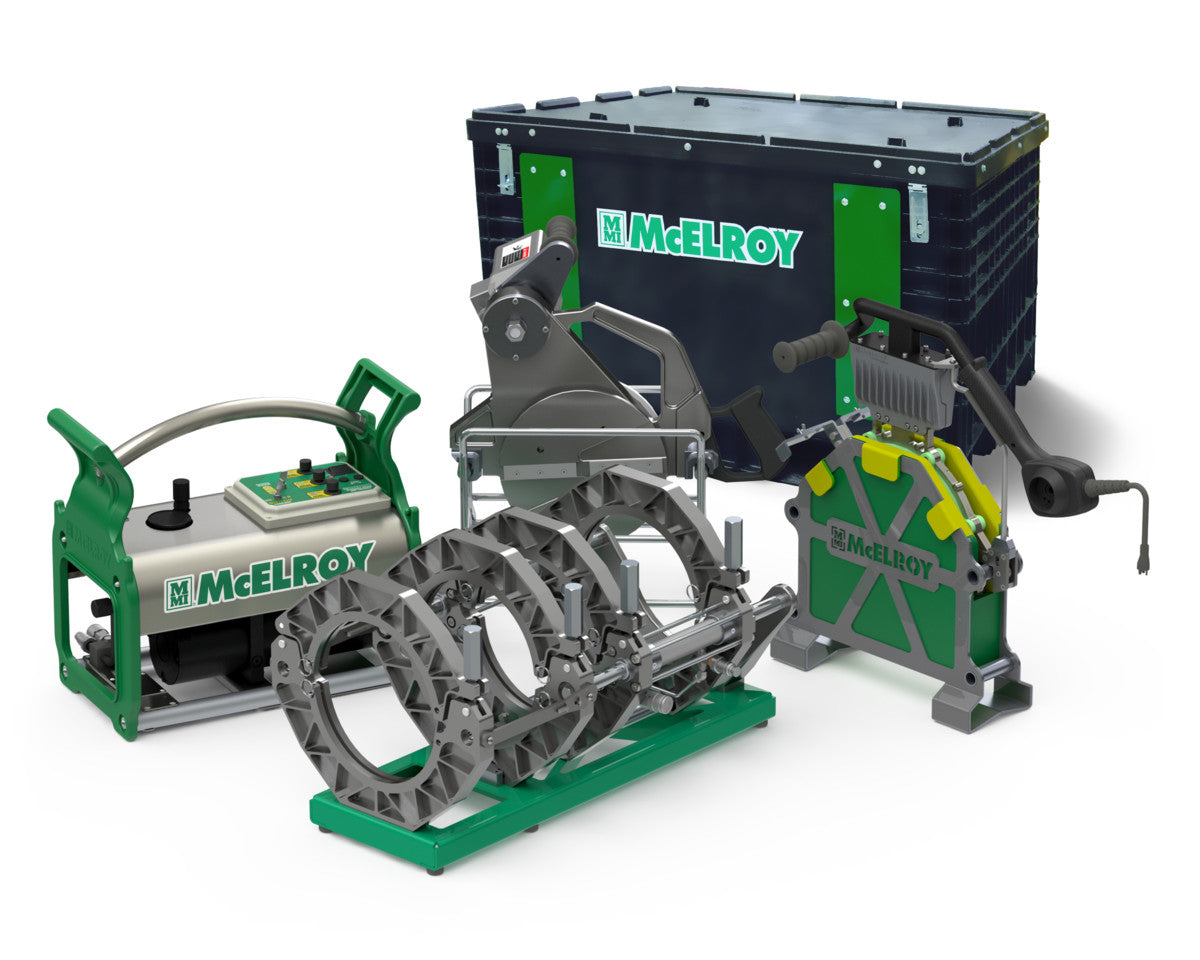

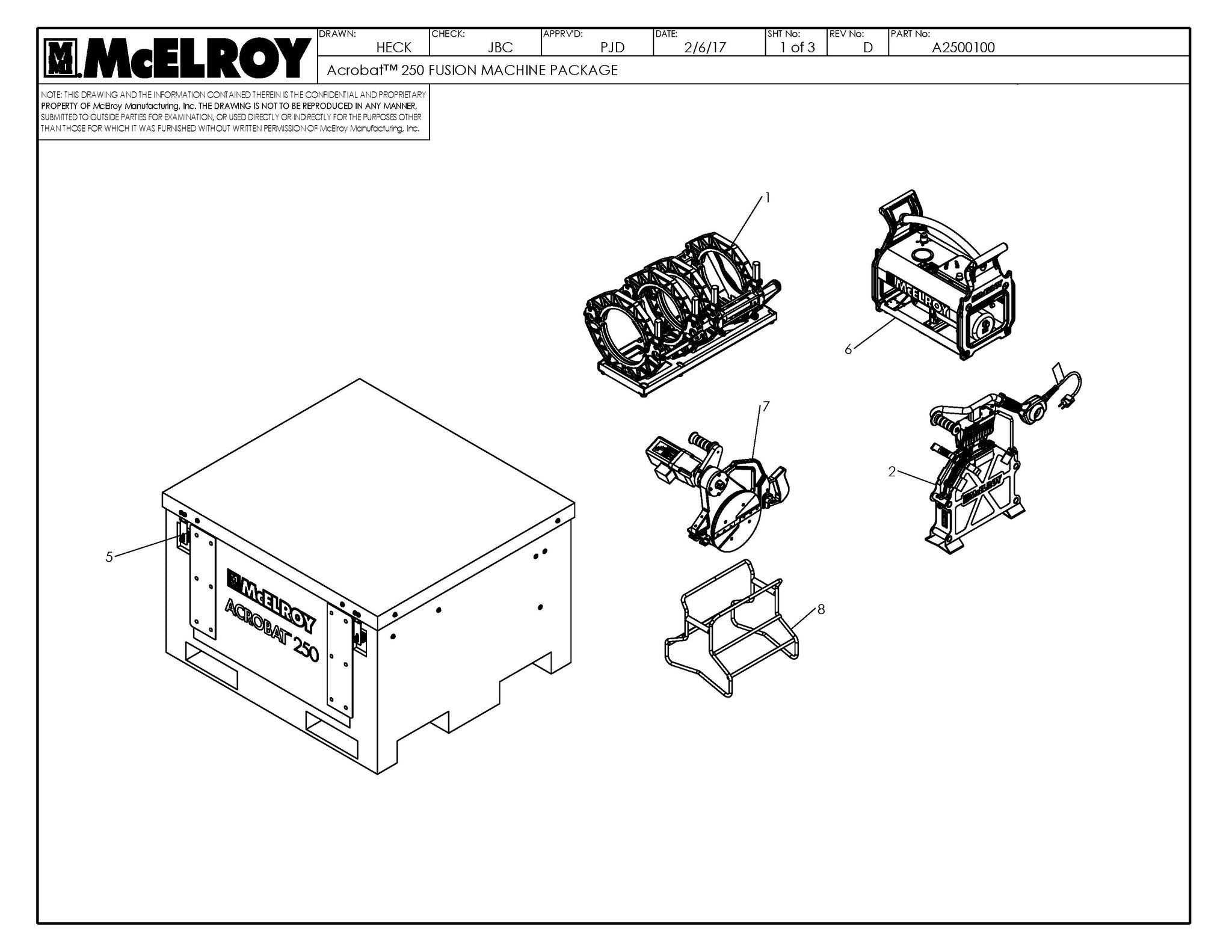

This package includes fusion machine, facer, heater, insulated heater stand, facer stand, HPU (Hydraulic Power Unit), 160mm inserts and shipping container.
